Heshbon is a globally trusted brand in the automotive service industry, renowned for delivering high-performance workshop equipment with uncompromising quality. From hydraulic lifts and wheel alignment systems to brake testers and chassis measurement tools, Heshbon provides innovative, durable, and user-friendly solutions for professional garages and service centers.
Engineered with cutting-edge technology and strict quality control, Heshbon products ensure accuracy, safety, and efficiency across every aspect of vehicle repair and maintenance. Whether you’re running a small workshop or a large-scale service station, Heshbon’s comprehensive range of equipment is built to meet your operational demands with reliability and precision.

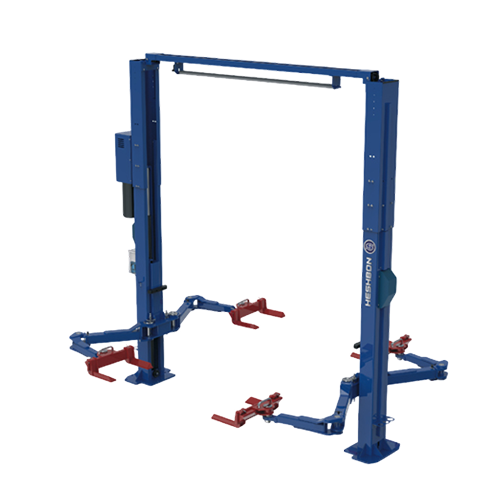

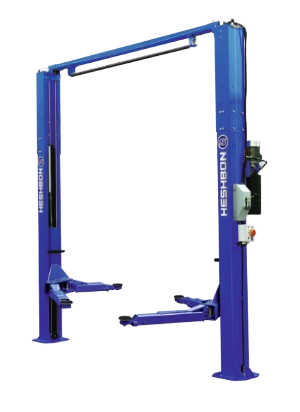

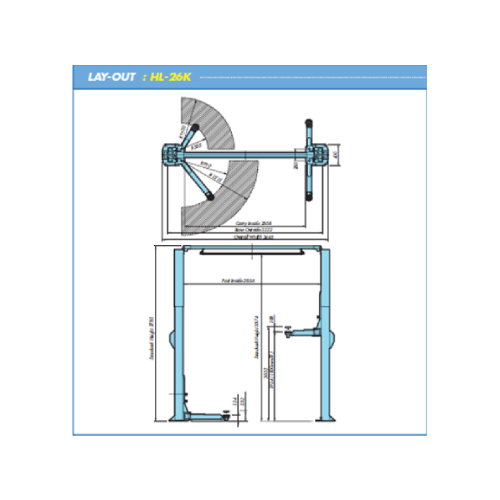

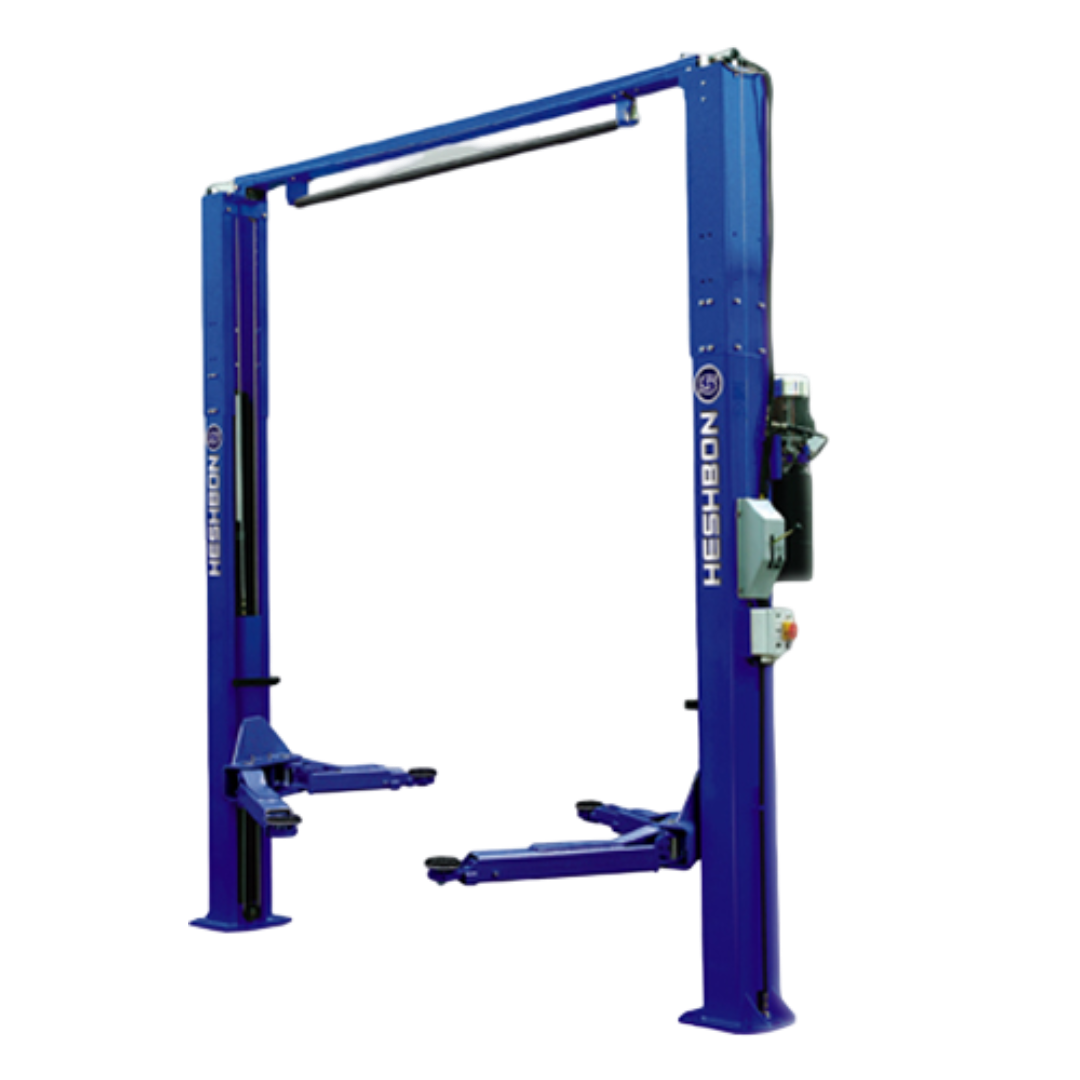

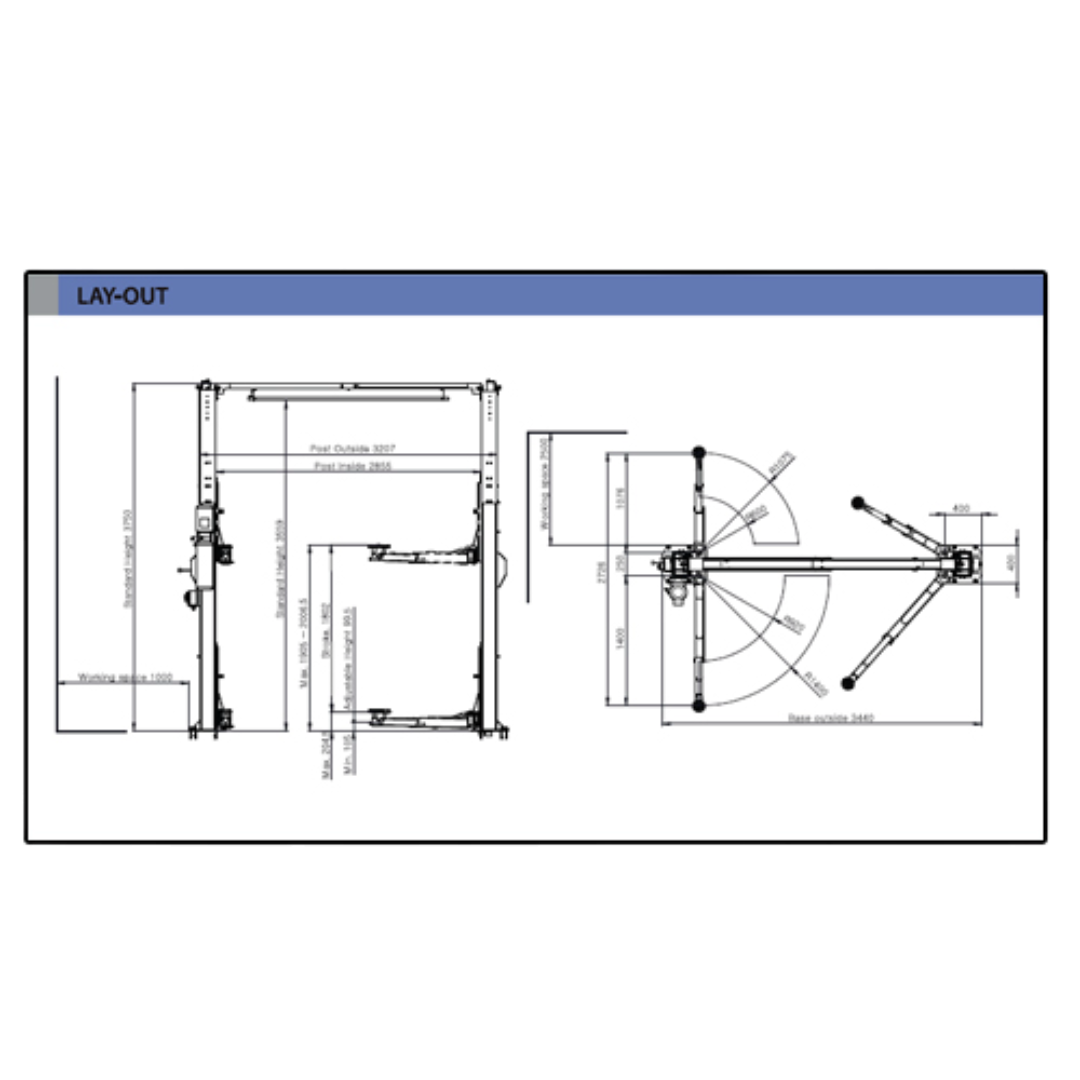

HESHBON HL26K
A hydraulic two-post lift with 4-ton capacity and base-free design, ideal for professional workshops. Provides stable lifting for cars and light commercial vehicles with minimal floor obstruction.

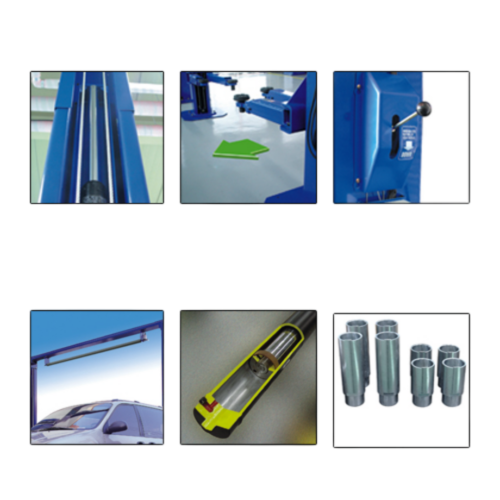

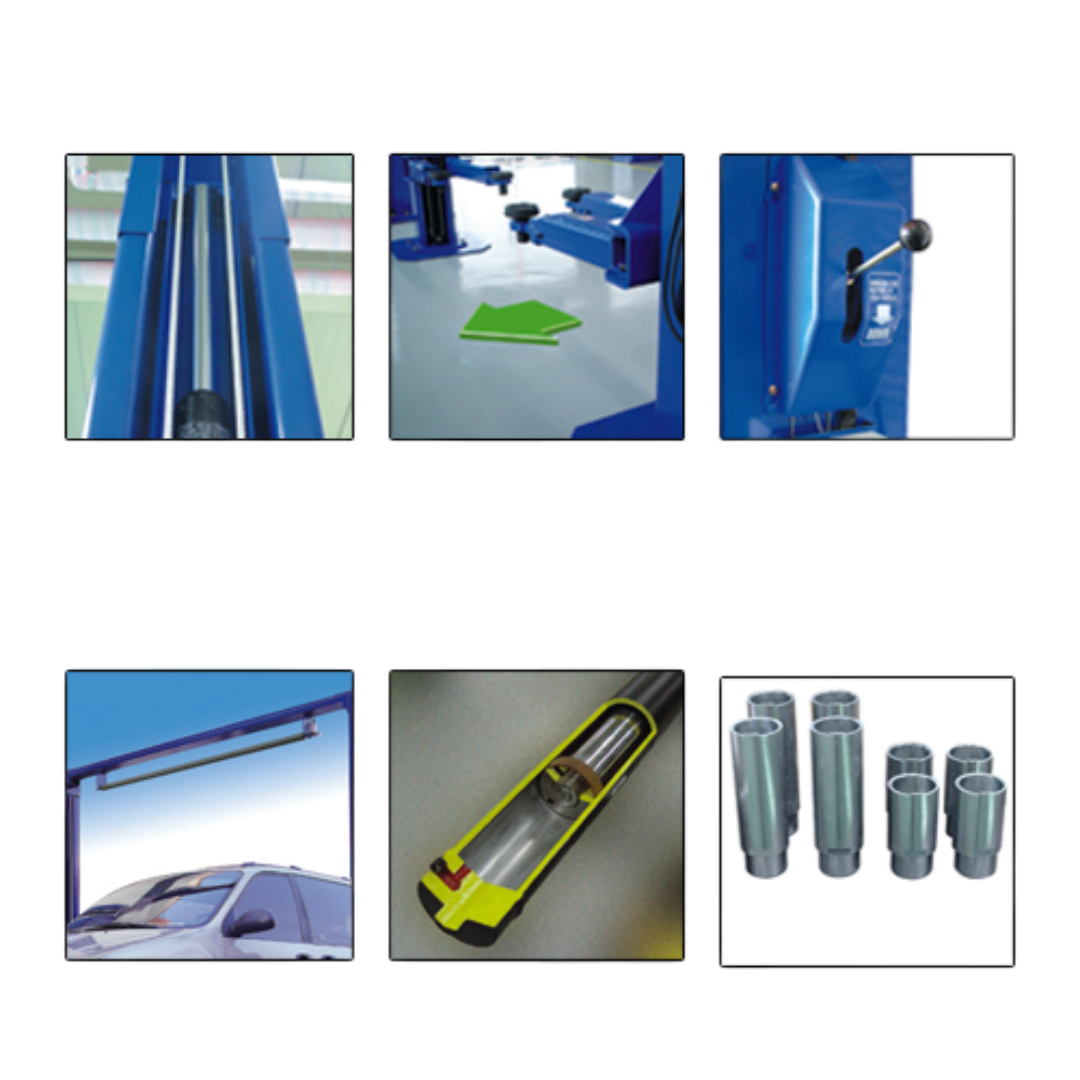

- High-Performed durable RAM type cylinders in each post provides powerful and safety lifting performance.
- High quality pre-stretched synchronization wire rope.
- Double telescopic pad screw.
- Automatic arm restraint.
- Durable anti-friction carriage guides.
- Hand lever for manual type lock release device.
- Top limit touch bar and door protection rubber blocks protect the vehicle body.
- 250mm height adjustable top cross bar.
| Specification | Details |
|---|---|
| Model No. | HL-26K |
| Lifting Capacity (kg) | 4,000 kg |
| Max. Lifting Height (mm) | 1,890 – 1,930 mm |
| Dimension (mm) | 2,726 (L) × 3,440 (W) × 3,750 (H) |
| Power Supply & Motor | 1ph : 2.5HP, 4P, 220V, 50/60Hz |
| Net Weight | 760 kg |
| Lifting Time / Lowering Time | 40 – 50 sec. / 30 – 40 sec. |

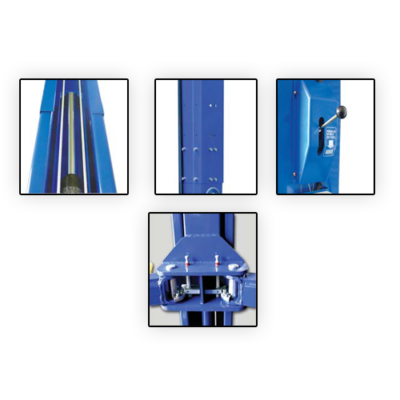

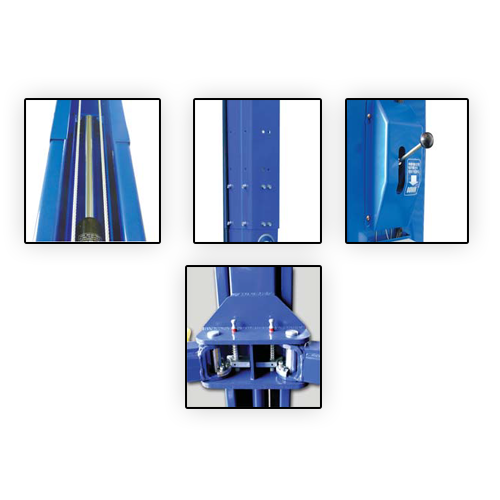

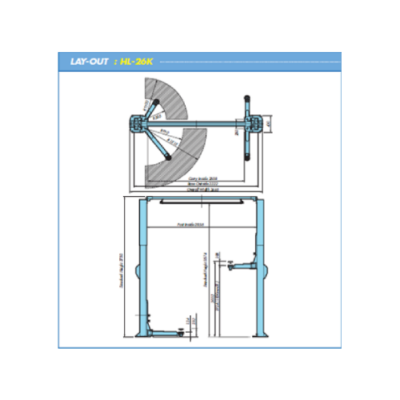

HESHBON HL26K PRO
An upgraded version of the HL26K featuring a reinforced structure and enhanced hydraulic system. Offers smooth operation, superior lifting stability, and increased capacity for SUVs and heavier vehicles.
- 2.6 Ton Lifting Capacity
- Electromechanical Lock Release System
- Symmetric Arm Configuration
- Heavy-Duty Steel Construction

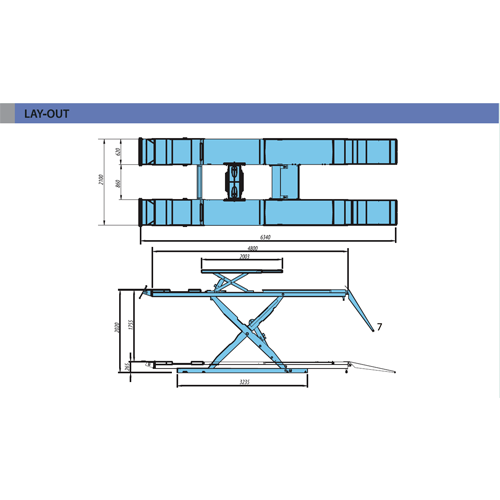

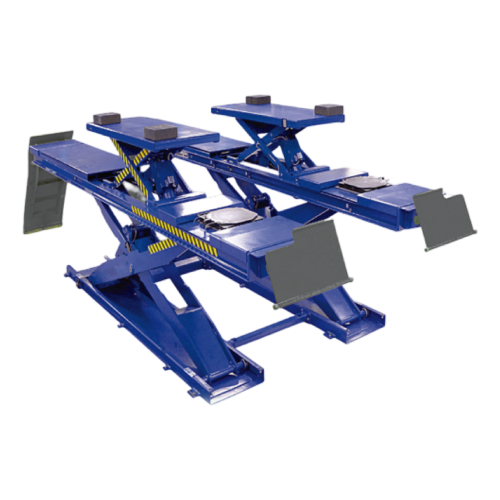

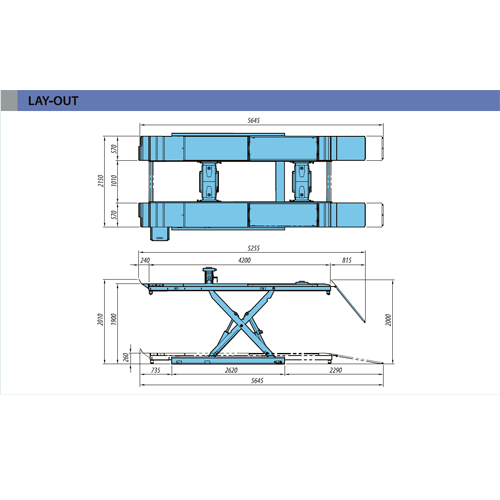

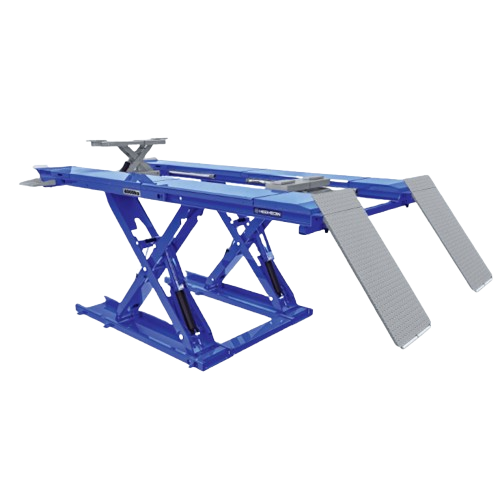

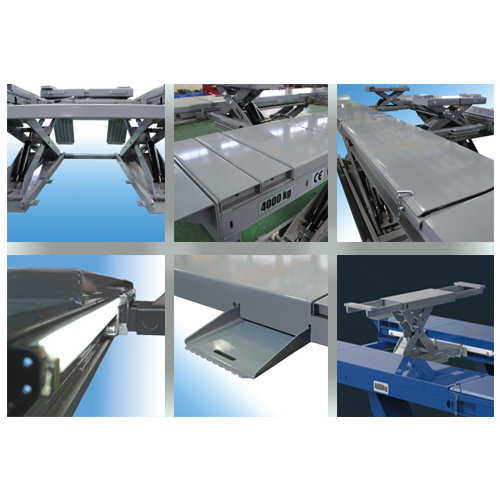

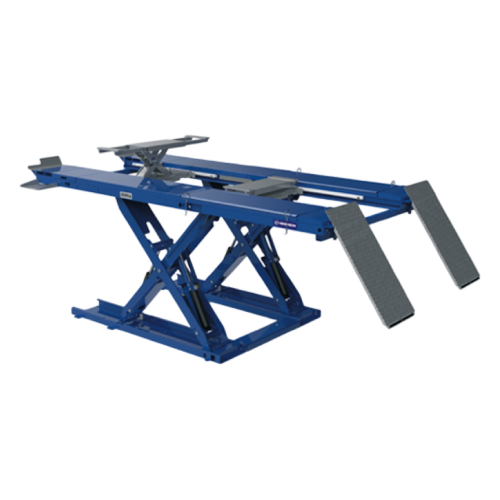

HESHBON HL35

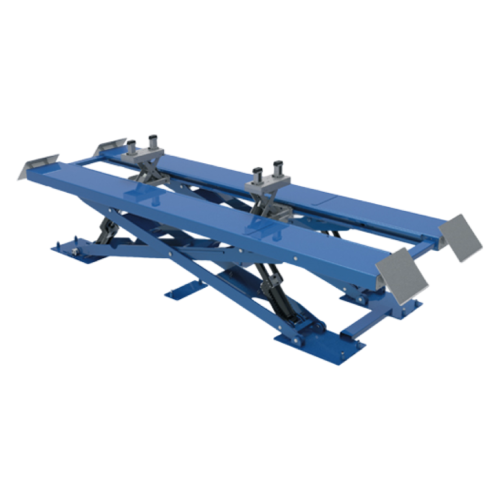

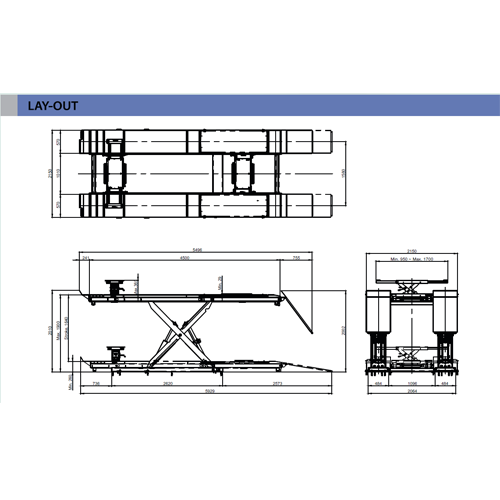

A precision scissor lift designed for wheel alignment tasks. The compact 4200 mm platform and central hydraulic jack ensure easy vehicle positioning and efficient underbody access.
- Master&Slave system composed by high-performed durable hydraulic cylinders.
- Air operated locking device.
- Easy synchronization control system by special hydraulic valves.
- Front turn-table recesses and rear sliding plates for 4-wheel alignment operation.
- Applicable to both in/above-ground mount.
- Pit frame for in-ground type. (Option)
- Step-up plate for worker’s convenience. (Option)
- Two jack-extensions help avoiding interference from battery of EV
| Specification | Details |
|---|---|
| Model No. | HL-52X |
| Lifting Capacity (kg) | 4,000 kg / 2,000 kg |
| Max. Lifting Height (mm) | Body: 1,900 mm / Jack: 530 mm |
| Dimension (mm) | 5,465 (L) × 2,150 (W) × 260 (H) |
| Power Supply & Motor | 1ph: 2.5HP / 220V / 50Hz or 3ph: 2HP / 220,380V / 50/60Hz |
| Net Weight | 2,100 kg (without control box) |
| Lifting Time | Body: 40–60 sec / Jack: 5–15 sec |
| Lowering Time | Body: 35–45 sec / Jack: 10–30 sec |
HESHBON HL-26 EF

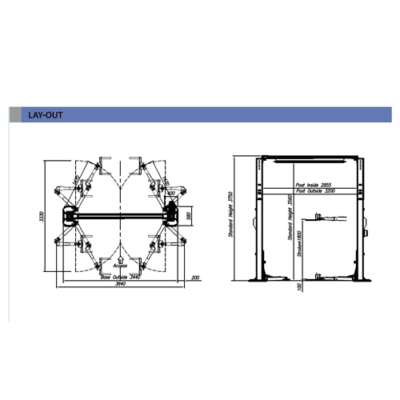

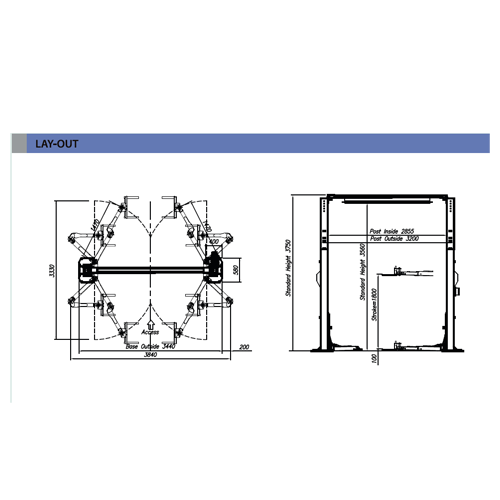

A low-profile, on-ground double scissor lift for quick service bays. Features 3.2-ton capacity and an integrated powerpack for efficient, space-saving vehicle lifting.

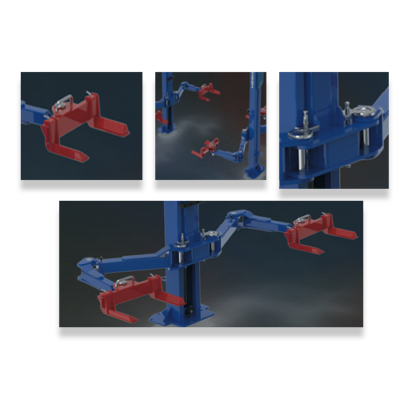

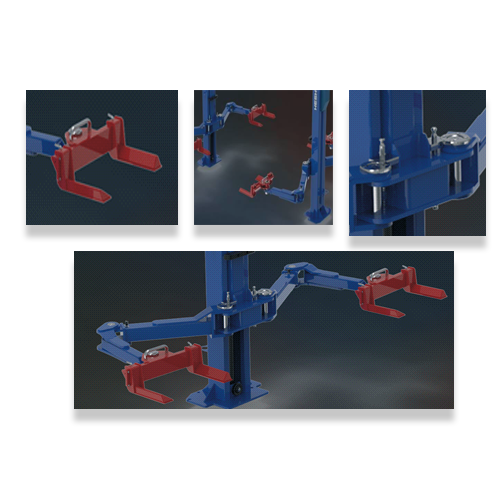

- Double jointed arms with special adapter for battery replacement of EV.
- Special adaptor can be interchangeable with current arm adapter for vehicle.
- Master & Slave cylinder system composed by high-Performed durable hydraulic cylinders.
- Durable anti-friction carriage guides.
- Electroic solenoid automatic safety locker.
- Safer and stronger structure with wide column base plate.
- Top limit touch bar and door protection rubber blocks protect the vehicle body.
| Specification | Details |
|---|---|
| Model No. | HL-26EF |
| Lifting Capacity (kg) | 5,000 kg |
| Max. Lifting Height (mm) | 1,900 – 1,920 mm |
| Dimension (mm) | 3,330 (L) × 3,840 (W) × 3,750 (H) |
| Power Supply & Motor | 1ph: 2.5HP / 220V / 50Hz or 3ph: 2HP / 220,380V / 50/60Hz |
| Net Weight | 850 kg |
| Lifting Time / Lowering Time | 50–60 sec. / 50–60 sec. |
HESHBON HL-27 M
The HESHBON HL-27M is a heavy-duty, electro-hydraulic clear-floor 2-post lift. While nominally marketed in the 5-ton category, it features an actual lifting capacity of 6,000 kg (6 Tons), making it highly suitable for safely lifting heavy Electric Vehicles (EVs), SUVs, and commercial vans.
- High-Performed durable RAM type cylinders in each post provides powerful and safety lifting performance.
- High quality pre-stretched synchronization wire rope.
- Double telescopic pads screw.
- Automatic arm restraints.
- Durable anti-friction carriage guides.
- Hand lever for manual type locker release device.
- Top limit touch bar and door protection rubber blocks protect the vehicle body.
- 230mm height adjustable top cross bar.
| Specification | Details |
|---|---|
| Model No. | HL-27M |
| Lifting Capacity (kg) | 6,000 kg |
| Max. Lifting Height (mm) | 1,900 – 1,945 mm |
| Dimension (mm) | 3,020 (L) × 3,498 (W) × 4,445 (H) |
| Power Supply & Motor | 3ph: 3HP, 4P, 220/380V, 50/60Hz |
| Net Weight | 910 kg |
| Lifting Time / Lowering Time | 50–60 sec. / 50–60 sec. |

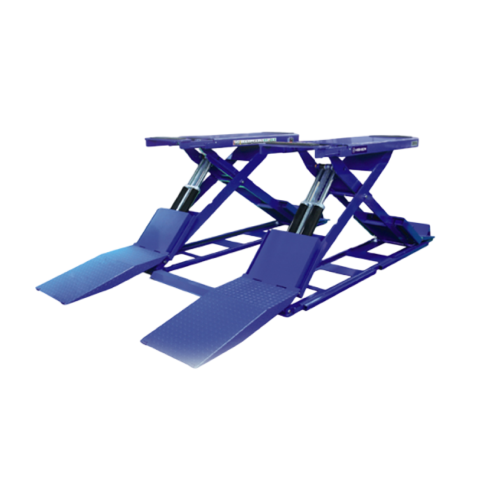

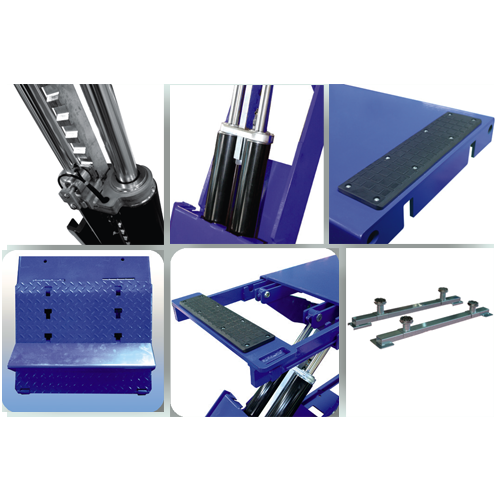

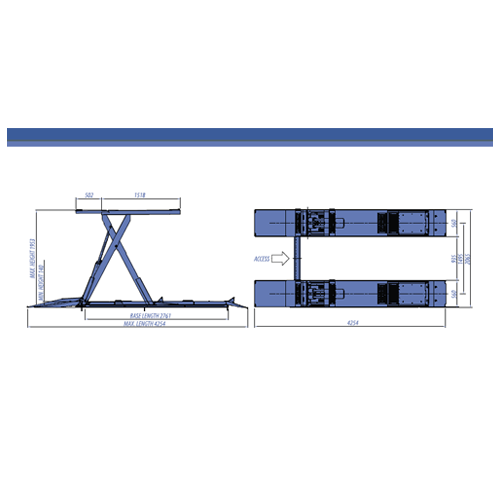

HESHBON HL-32X
The Heshbon HL-32X is a 3.3-ton hydraulic scissor lift designed to provide a completely clear floor space when fully lowered. It is widely used in automotive workshops due to its dual master-slave hydraulic cylinder system and wheel-free operation.
- Master & Slave cylinder system composed by high-Performed durable hydraulic cylinders.
- Easy synchronization control system by special hydraulic valves.
- Air cylinder operated locking device.
- Platforms slide extensions.
- Front detachable wheel stopper for drive through.
- Rubber pads on the platform to protect the vehicle chassis.
- Applicable to both in/above-ground mount.
- Descend alarm signal.
- De-synchronization detecting electronic photo-cell.
- Hydraulic hand-pump for emergency ascend/descend.
- Two step descending system gives full foot protection.
- Van Adaptor kit. (OPTION)
- Pit frame for in-ground type. (OPTION)
| Specification | Details |
|---|---|
| Model No. | HL-32X / ABOVE-GROUND |
| Lifting Capacity (kg) | 3,300 kg (CE) / 3,000 kg |
| Max. Lifting Height (mm) | 1,953 mm |
| Dimension (mm) | 4,254 (L) × 2,065 (W) × 140 (H) |
| Power Supply & Motor | 1ph: 2.5HP, 4P, 220V, 50/60Hz |
| Net Weight | 1,050 kg |
| Lifting Time / Lowering Time | 55–65 sec. / 50–65 sec. |

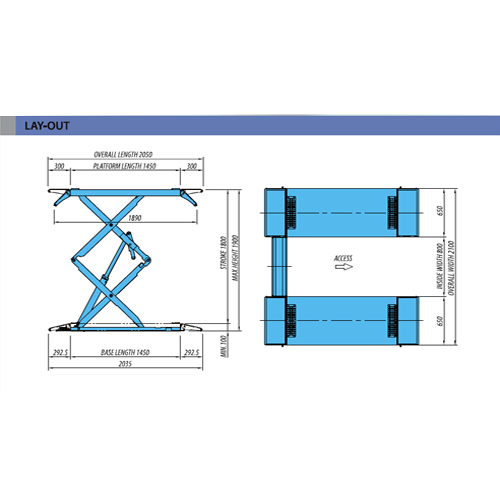

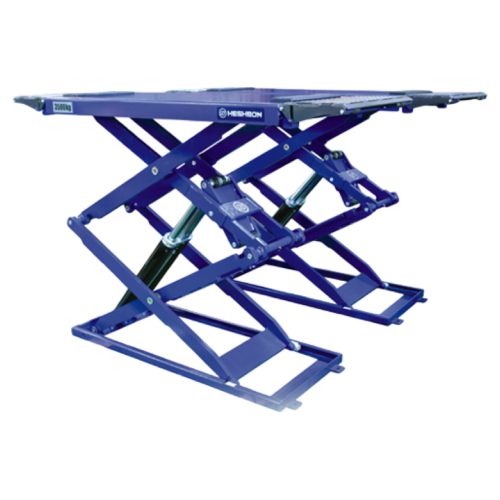

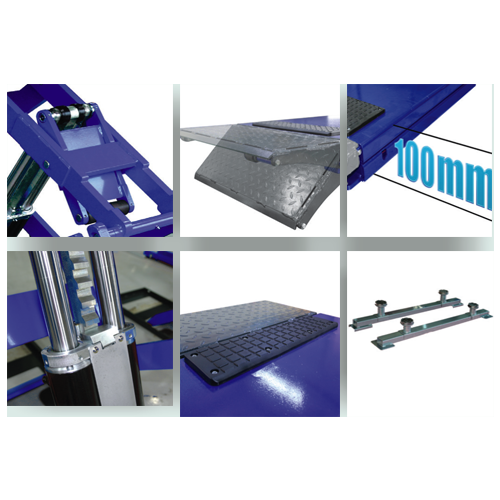

HESHBON HL-35S
The HESHBON HL-35S is a professional-grade, 3.5-ton capacity pneumatic-release double scissor lift. Ideal for wheel-free servicing and low-clearance vehicles, it features a low profile of 100mm, automatic leveling/synchronization, and multiple mechanical locking positions.
- High-Performed durable hydraulic cylinders composed by double pressure seals.
- Master & Slave cylinder synchronization system.
- Easy synchronization control system by special hydraulic valves.
- Extra low 100mm height profile.
- Descend alarm signal.
- Air cylinder operated locking device.
- Double function one touch ramp/extension platform.
- Rubber pads on the platform to protect the vehicle chassis.
- De-synchronization detecting electronic photo-cell.
- Hydraulic hand-pump for emergency ascend/descend.
- Two step descending system gives full foot protection.
- Van Adaptor kit. (OPTION)
- Pit frame for in-ground type. (OPTION)
| Specification | Details |
|---|---|
| Model No. | HL-35S |
| Lifting Capacity (kg) | 3,500 kg |
| Max. Lifting Height (mm) | 1,900 mm |
| Dimension (mm) | 2,035 (L) × 2,100 (W) × 100 (H) |
| Power Supply & Motor | 3ph: 2.5HP, 4P, 380V, 50/60Hz |
| Net Weight | 920 kg |
| Lifting Time / Lowering Time | 40–55 sec. / 30–45 sec. |

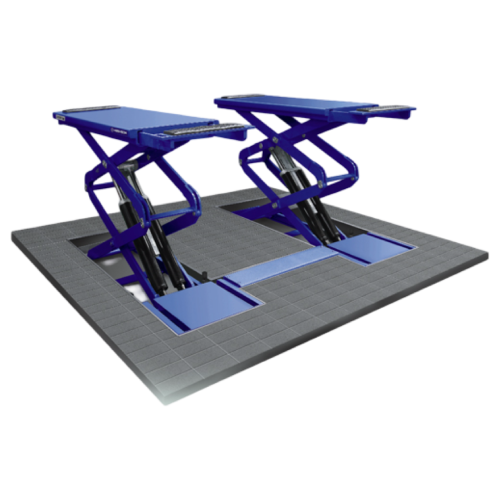

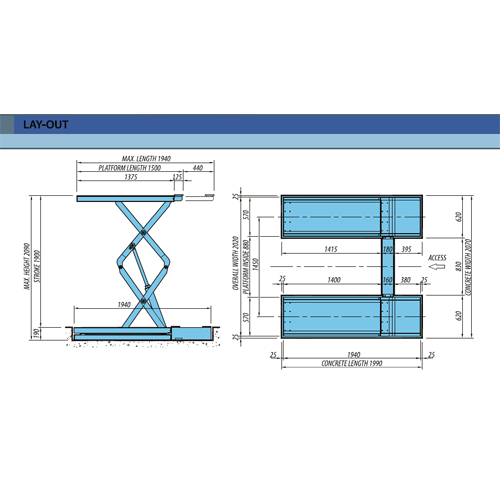

HESHBON HL35F

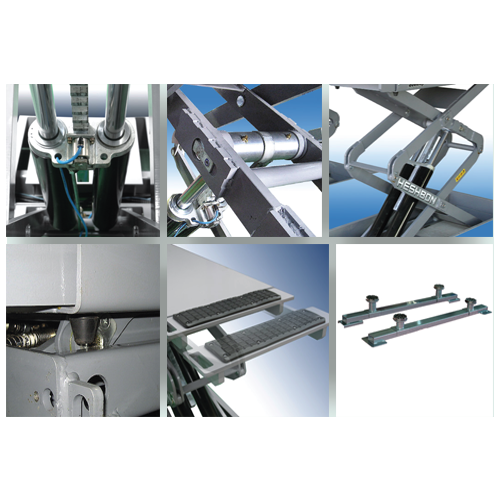

The Heshbon HL-35F is a premium, in-ground 3.5-ton capacity double scissor lift. Designed primarily for bodywork, tire service, and general maintenance, this model features an extra-low profile and provides a completely flush, obstruction-free floor space when fully lowered.
- Master & Slave cylinder system composed by high-Performed durable hydraulic cylinders.
- Easy synchronization control system by special hydraulic valves.
- Air cylinder operated locking device.
- Rubber pads on the platform to protect the vehicle chassis.
- Platforms slide extensions.
- Double scissor link structure for wider platform support.
- Cable remote control low voltage for any vantage point operation. (option)
| Specification | Details |
|---|---|
| Model No. | HL-35F |
| Lifting Capacity (kg) | 3,500 kg |
| Max. Lifting Height (mm) | 1,900 mm |
| Dimension (mm) | 1,940 (L) × 2,020 (W) × 190 (H) |
| Power Supply & Motor | 3ph: 2HP, 4P, 220/380V, 50/60Hz |
| Net Weight | 980 kg |
| Lifting Time / Lowering Time | 40–55 sec. / 30–45 sec. |
HESHBON HL-40D
The HESHBON HL-40D is a premium, 4-ton capacity in-ground double scissor lift engineered specifically for wheel alignments and vehicle servicing. It features a flat, obstruction-free floor profile when lowered and includes dual extensions for long-axis vehicles.
- Various test verification based on CE Standard.
- Long platform with dual Extension for long axis vehicle.
- Auto hydraulic oil supply system to slave cylinder.
- Photo sensor prevents accidence by stopping system when height difference (4~6cm) occurs.
- Master & Slave cylinder system composed by high-Performed durable hydraulic cylinders.
- Easy synchronization control system by special hydraulic valves.
- Air cylinder operated locking device.
- Rubber pads on the platform to protect the vehicle chassis.
- Platforms slide extensions.
- Double scissor link structure for wider platform support.
- Cable remote control low voltage for any vantage point operation. (Option)
| Specification | Details |
|---|---|
| Model No. | HL-40D |
| Lifting Capacity (kg) | 4,000 kg |
| Max. Lifting Height (mm) | 1,900 mm |
| Dimension (mm) | 2,272 (L) × 2,020 (W) × 250 (H) |
| Power Supply & Motor | 1ph: 3HP, 4P, 220/380V, 50/60Hz 3ph: 4HP, 4P, 220/380V, 50/60Hz |
| Net Weight | 1,100 kg |
| Lifting Time / Lowering Time | 40–55 sec. / 30–45 sec. |

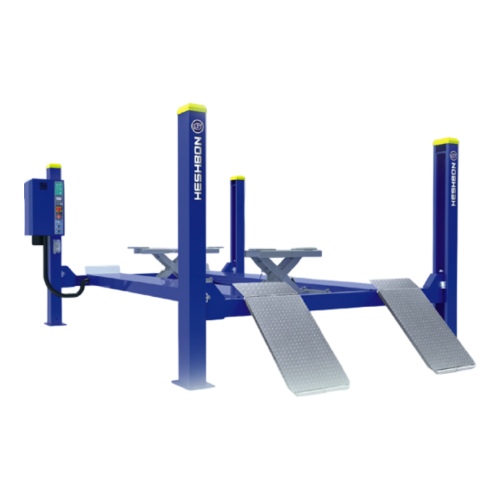

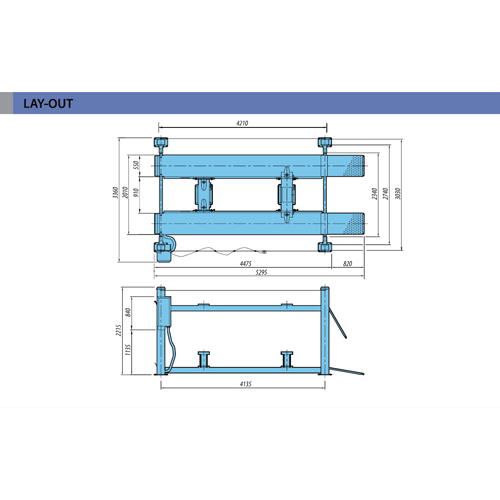

HESHBON HL-3300W

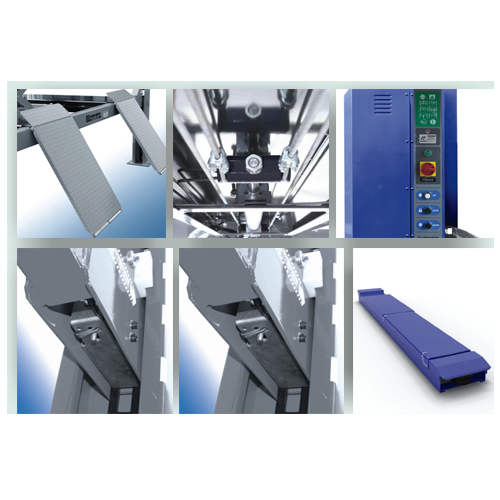

The HESHBON HL-3300W is a heavy-duty 4-ton, 4-post flat platform vehicle lift designed for general repair and wheel alignment. It features a protected hydraulic cylinder, eccentric cable-break safety brakes, and adjustable ratchet rails for precise leveling.
- Hydraulic cylinder located in the fixed platform and is thus perfectly protected.
- High resistance galvanized and pre-stretched lifting cable.
- Lock release lever for the emergency situation.
- Adjustable parking ratchet rails ensure the platforms and cross members horizontal within 4 wheel alignment tolerances.
- Automatic spring loaded eccentric brake system in the event of cable breakage and ensures complete stability during parking.
- Self lubricated large diameter pulleys and maintenance-free bushes.
- Hydraulic two-level 2ton scissor jack. (OPTION)
- Detachable alignment platform. (OPTION)
- Electric remote-controller. (OPTION)
| Specification | Details |
|---|---|
| Model No. | HL-3300W |
| Lifting Capacity | Body: 4,000 / Jack: 2,000 kg |
| Max. Lifting Height | Body: 1,750 / Jack: 455 mm |
| Dimension (mm) | 5,300 (L) × 3,360 (W) × 2,215 (H) |
| Power Supply & Motor | 1ph: 2.5HP, 4P, 220V, 50/60 Hz 3ph: 2HP, 4P, 220/380V, 50/60 Hz |
| Net Weight | 1450 kg |
| Lifting / Lowering Time | Body: 40–60 sec / Jack: 5–15 sec Body: 30–50 sec / Jack: 5–15 sec |
HESHBON HL-3300WL
The HESHBON HL-3300 series actually refers to a 4-Post Lift line, not a scissor lift. The HL-3300W is a 4-ton capacity platform hoist designed for wheel alignment and general servicing.
- Long type platform (4,510mm) for long vehicle.
- Due to the wider platform width 2,120mm, various types of vehicles can be operated reliably.
- Sliding ramps (Option) make ramps for extend & reduce, and the space utilization is more versatile due to the folding system.
- Hydraulic cylinder located in the fixed platform and is thus perfectly protected.
- High resistance galvanized and pre-stretched lifting cable.
- Lock release lever for emergency situations.
- Adjustable parking ratchet rails ensure the platforms and cross members remain horizontal within 4 wheel alignment tolerances.
- Automatic spring-loaded eccentric brake system in the event of cable breakage ensures complete stability during parking.
- Self-lubricated large diameter pulleys and maintenance-free bushes.
| Specification | Details |
|---|---|
| Model No. | HL-3300L |
| Lifting Capacity (kg) | Body: 4,000 / Jack: 2,000 kg |
| Max. Lifting Height (mm) | Body: 1,750 / Jack: 575 mm |
| Dimension (mm) | 6,278 (L) × 3,360 (W) × 2,215 (H) |
| Power Supply & Motor | 1ph: 2.5HP, 4P, 220/380V, 50/60Hz 3ph: 2HP, 4P, 220/380V, 50/60Hz |
| Net Weight | 1565 kg |
| Lifting Time / Lowering Time | Body: 40–60 sec / Jack: 5–15 sec Body: 30–50 sec / Jack: 5–15 sec |

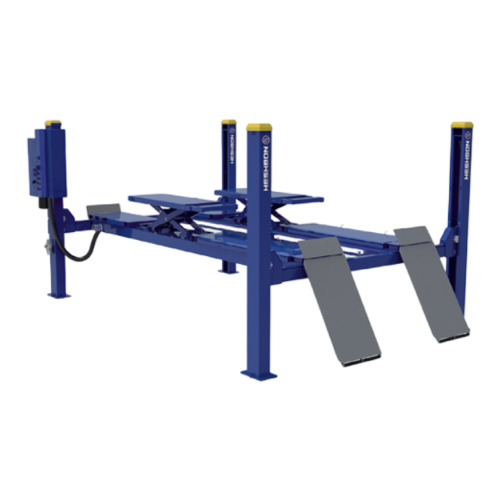

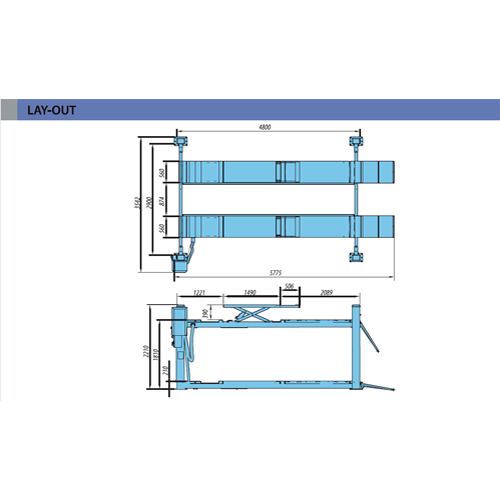

HESHBON HL-42F

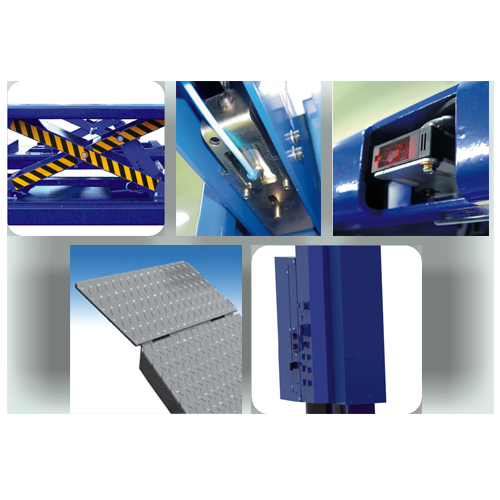

The HESHBON HL-42F is a heavy-duty, 4-ton capacity four-post lift specifically engineered for precise wheel alignment and general servicing. It features adjustable platforms, integrated rear slip plates, and front turning plate recesses to accommodate a wide variety of vehicle wheelbases.
- Hydraulic cylinder located in the fixed platform and is thus perfectly protected.
- High-resistance galvanized and pre-stretched lifting cable.
- Adjustable parking ratchet rails ensure the platforms and cross members remain horizontal within 4 wheel alignment tolerances.
- Automatic spring-loaded eccentric brake system in the event of cable breakage ensures complete stability during parking.
- Self-lubricated large diameter pulleys and maintenance-free bushes.
- Auxiliary lift table built in the platforms for wheel-free operation.
- Auto-pneumatic rear slip plates locking device.
- Front turn-table recesses and rear sliding plates for 4-wheel alignment operation.
- Two-step descending system gives full foot protection. (CE)
- Hydraulic hand-pump for emergency ascend/descend. (CE)
- De-synchronization detecting electronic photo-cell. (CE)
- Descend alarm signal. (CE)
- Lighting kits 4 pcs. (OPTION)
| Specification | Details |
|---|---|
| Model No. | HL-42F |
| Lifting Capacity (kg) | Body: 4,000 kg / Jack: 3,000 kg |
| Max. Lifting Height (mm) | Body: 1,810 mm / Jack: 390 mm |
| Dimension (mm) | 5,775 (L) × 3,542 (W) × 2,210 (H) |
| Power Supply & Motor | 3ph: 3HP, 4P, 220/380V, 50/60Hz |
| Net Weight | 1,950 kg |
| Lifting Time | Body: 40–60 sec. / Jack: 5–15 sec. |
| Lowering Time | Body: 30–50 sec. / Jack: 5–15 sec. |

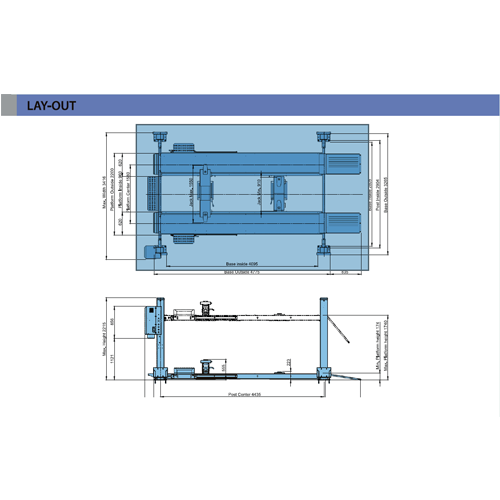

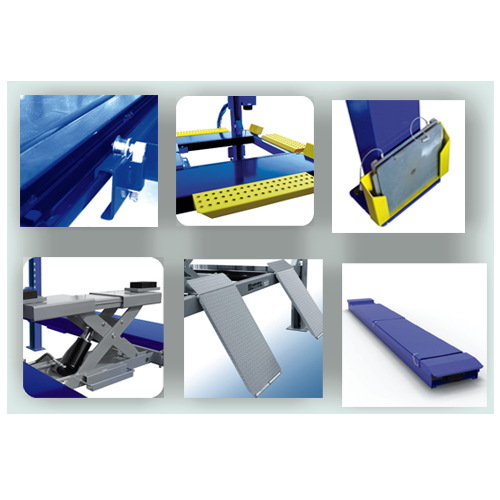

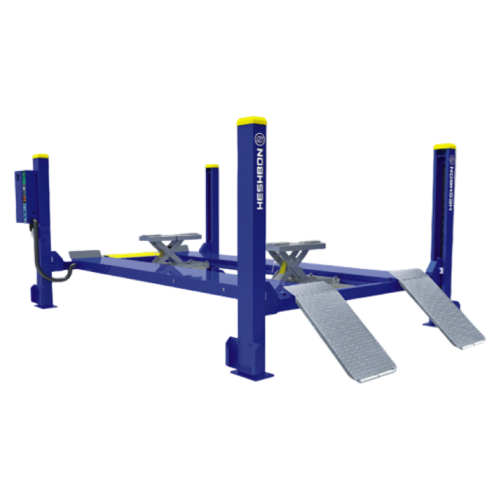

HESHBON HL-42L
The HESHBON HL-42L is a 4.5-ton capacity 4-post vehicle hoist primarily used for wheel alignment. If you are looking for a scissor-style wheel alignment lift, HESHBON's primary model is the HL-52F, which has a 4.4-ton capacity and features built-in auxiliary jacks.
- Hydraulic cylinder located in the fixed platform and is thus perfectly protected.
- High resistance galvanized and pre-stretched lifting cable.
- Lock release lever for the emergency situation.
- Adjustable parking ratchet rails ensure the platforms and cross members horizontal within 4 wheel alignment tolerances.
- Automatic spring loaded eccentric brake system in the event of cable breakage ensures complete stability during parking.
- Self lubricated large diameter pulleys and maintenance-free bushes.
- Hydraulic two-level 2ton scissor jack. (OPTION)
- Electric remote-controller. (OPTION)
- Step-up plates for worker’s convenience. (OPTION)
- Turn-table pocket. (OPTION)
| Specification | Details |
|---|---|
| Model No. | HL-42L |
| Lifting Capacity (kg) | Body: 5,000 / Jack: 2,500 kg |
| Max. Lifting Height (mm) | Body: 1,740 mm / Jack: 455 mm |
| Dimension (mm) | 5,859 (L) × 3,416 (W) × 2,212 (H) |
| Power Supply & Motor | 1ph: 2.5HP, 4P, 220V, 50/60 Hz 3ph: 2HP, 4P, 220/380V, 50/60 Hz 1600 |
| Net Weight | 630 kg |
| Lifting Time / Lowering Time | Body: 40–60 sec / Jack: 5–15 sec Body: 30–50 sec / Jack: 5–15 sec |

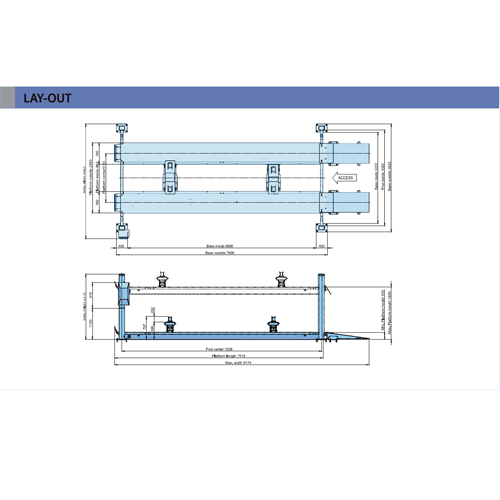

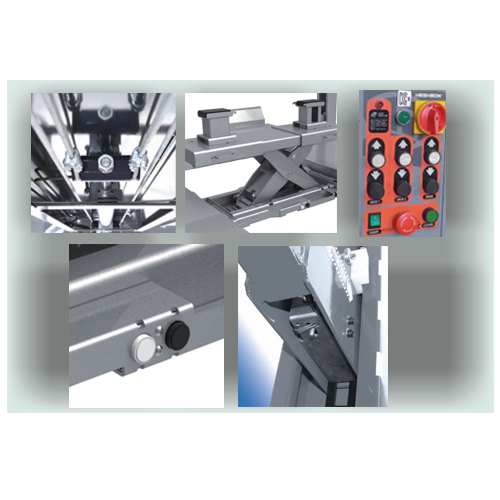

HESHBON HL-410A
A high-performance scissor lift designed for general service and inspection bays. Compact yet powerful, it offers safe and quick lifting for a wide range of passenger vehicles.
- Cylinder & power pack ability for 10 ton capacity.
- Auto control for center rolling jack.
- Hydraulic cylinder located in the fixed platform and is thus perfectly protected.
- High resistance galvanized and pre-stretched lifting cable.
- Lock release lever for the emergency situation.
- Adjustable parking ratchet rails ensure the platforms and cross members remain horizontal within 4 wheel alignment tolerances.
- Automatic spring loaded eccentric brake system in the event of cable breakage ensures complete stability.
- Self-lubricated large diameter pulleys and maintenance-free bushes.
- Automatic alarm function to let the user know the wire exchange cycle.
- Hydraulic two-level 5 ton scissor jack. (OPTION)
- Electric remote-controller. (OPTION)
| Specification | Details |
|---|---|
| Model No. | HL-410A |
| Lifting Capacity | Body: 10,000 kg / Jack: 5,000 kg |
| Max. Lifting Height | Body: 1,900 mm / Jack: 795 mm |
| Dimension (mm) | 9,174 (L) × 4,074 (W) × 2,311 (H) |
| Power Supply & Motor | 3ph / 4PH, 4P, 220/380V, 50/60Hz |
| Net Weight | 3800 kg |
| Lifting / Lowering Time | Body: 85–95 sec / Jack: 10–20 sec Body: 50–65 sec / Jack: 10–20 sec |
HESHBON HL52X
The HESHBON HL-52X is an electro-hydraulic, dual-level scissor lift designed for 4-wheel alignments. It features a primary 4,000 kg (4-ton) capacity for the main body and an integrated secondary jack, making it ideal for automotive service centers handling cars and light commercial vehicles.
- Master & Slave system composed of high-performance durable hydraulic cylinders.
- Air operated locking device.
- Easy synchronization control system using special hydraulic valves.
- Front turn-table recesses and rear sliding plates for 4-wheel alignment operation.
- Applicable for both in-ground and above-ground mounting.
- Pit frame for in-ground type. (OPTION)
- Step-up plate for worker’s convenience. (OPTION)
- Two jack extensions help avoid interference from EV battery.
| Specification | Details |
|---|---|
| Model No. | HL-52X |
| Lifting Capacity (kg) | 4,000 kg / 2,000 kg |
| Max. Lifting Height (mm) | Body: 1,900 mm / Jack: 530 mm |
| Dimension (mm) | 5,465 (L) × 2,150 (W) × 260 (H) |
| Power Supply & Motor | 1ph: 2.5HP / 220V / 50Hz or 3ph: 2HP / 220,380V / 50/60Hz |
| Net Weight | 2,100 kg (without control box) |
| Lifting Time | Body: 40–60 sec / Jack: 5–15 sec |
| Lowering Time | Body: 35–45 sec / Jack: 10–30 sec |
HESHBON HL53X
The HESHBON HL-53X is a heavy-duty, premium electro-hydraulic scissor lift featuring a 4-ton main platform capacity and a 2-ton built-in auxiliary jack. Engineered specifically for precision 4-wheel alignments, it includes front turntable recesses and rear sliding plates.
- Master & Slave system composed of high-performance durable hydraulic cylinders.
- Air operated locking device.
- Easy synchronization control system using special hydraulic valves.
- Front turn-table recesses and rear sliding plates for 4-wheel alignment operation.
- Applicable for both in-ground and above-ground mounting.
- Pit frame for in-ground type. (OPTION)
- Step-up plate for worker’s convenience. (OPTION)
- Lighting set, 4 units. (OPTION)
- Two-step descent system gives full foot protection.

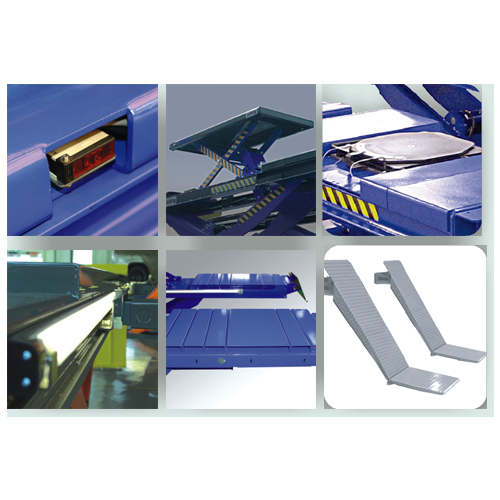

HESHBON HL52F
The Heshbon HL-52F is a heavy-duty, premium hydraulic scissor lift engineered specifically for 4-wheel alignments and vehicle maintenance. With a massive overall capacity, it easily accommodates both passenger cars and light commercial vehicles
- Automatic air lock release device.
- Locking position sensor.
- Hydraulic synchronization system. (Auxiliary lift)
- Descent alarm signal.
- Electrical synchronization control system by photo-cell.
- Torsion bar for high performance synchronization.
- Floor-mounted or flush-mounted model.
- Auxiliary lifts built into the platforms for wheel-free operation.
- Front recesses and rear slide plates for 4-wheel alignment operation.
- Pneumatic locks on rear slide plates.
- Lighting set, 4 units. (OPTION)
- Flush mount kit. (OPTION)
- Emergency ascent and descent systems.
- Two-step descent system gives full foot protection.
| Specification | Details |
|---|---|
| Model No. | HL-52F |
| Lifting Capacity (kg) | 4,400 kg / 3,600 kg |
| Max. Lifting Height (mm) | Body: 2,020 mm / Jack: 480 mm |
| Dimension (mm) | 6,340 (L) × 2,100 (W) × 265 (H) |
| Power Supply & Motor | 3ph, 3HP / 4HP (CE), 2P, 220/380V, 50/60Hz |
| Net Weight | 2,990 kg (without control box) |
| Lifting Time | Body: 40–60 sec / Jack: 10–20 sec |
| Lowering Time | Body: 45–60 sec / Jack: 10–20 sec |

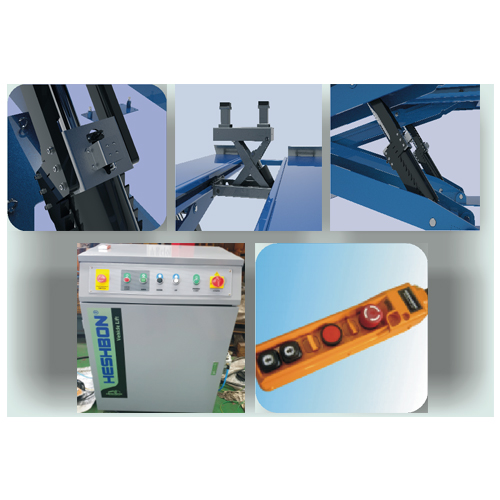

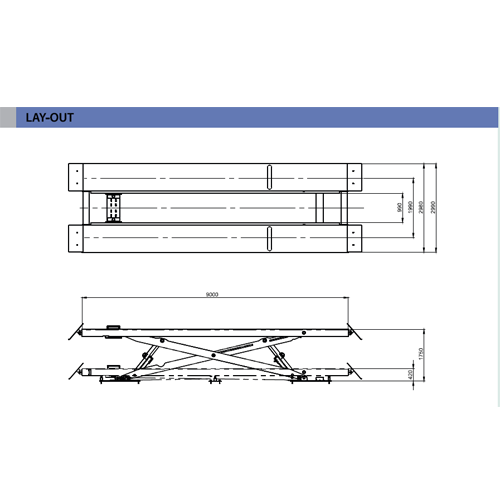

HESHBON HL-300X
The HESHBON HL-300X is a 30-ton heavy-duty, surface-mounted scissor lift manufactured in South Korea. Designed for heavy commercial vehicles like large trucks and buses, it features a built-in auxiliary jack and provides optimal accessibility for wheel alignments.
- Accurate synchronization by Master & Slave cylinder.
- Multi-level safety lock 4EA application.
- Locking proximity sensor applied to prevent misalignment of the main locking part during ascending and descending.
- Wired remote control applied for better work convenience.
- Improved safety with a scissor lift structure.
- Upper and lower rollers prevent foreign substances from entering equipment and minimize friction.
- Center rolling jack available. (OPTION)
| Specification | Details |
|---|---|
| Model No. | HL-300X |
| Lifting Capacity (kg) | 30,000 kg / 13,500 kg |
| Max. Lifting Height (mm) | Body: 1,750 mm / Jack: 500 mm |
| Dimension (mm) | 9,000 (L) × 2,990 (W) × 420 (H) |
| Power Supply & Motor | 3ph: 15HP × 4P × 220V / 380V, 50/60Hz |
| Net Weight | 12,000 kg (Include control box) |
| Lifting Time | Body: 80–120 sec / Jack: 20–40 sec |
| Lowering Time | Body: 70–110 sec / Jack: 20–40 sec |
