E1 GYS AUTO - WITH ACCESSORIES
E1 GYS AUTO is a 200 A single-phase synergic MIG/MAG welding machine, specially designed for bodyshops.
Equipped with an intuitive full-colour interface, it delivers excellent welding performance on steel and aluminum, even on thin materials. Its synergies also include brazing with CuSi3 and CuAl8 wires.
- Steel and stainless steel wire: Ø 0.6 to 1.0 mm
- Aluminium wire: Ø 0.8 to 1.2 mm (Ø 1.2 mm, non-intensive welding)
- CuSi and CuAl wire: Ø 0.8 and 1.0 mm
- Specific synergies: Steel, AlSi, AlMg, CuSi3, CuAl8, CrNi
- After entering 3 pieces of data (Easy mode): wire diameter, material/gas combination and workpiece thickness, the product automatically determines the optimal welding conditions

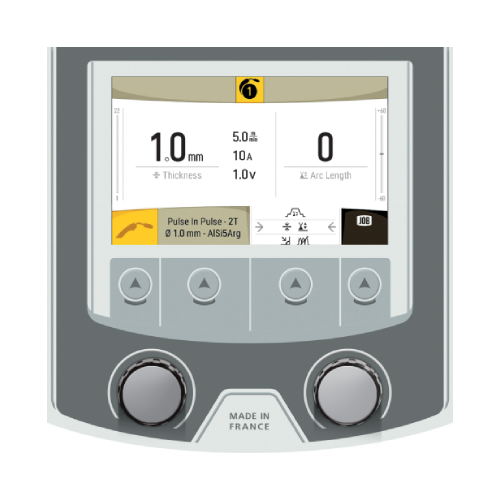

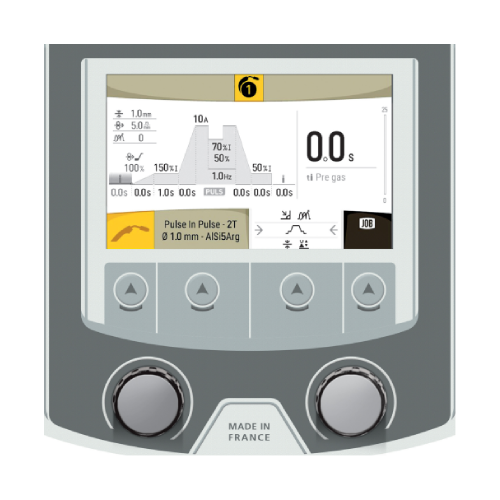

- New simplified 3.5’’ HMI designed for bodyshops
- Full machine and synergy updates via USB stick
- Storage of up to 200 welding programs (Jobs) for recurring tasks
- Portability function allows the user’s JOBS and machine configuration to be saved, loaded and transported using a USB stick
AUTOPULSE 320-T3

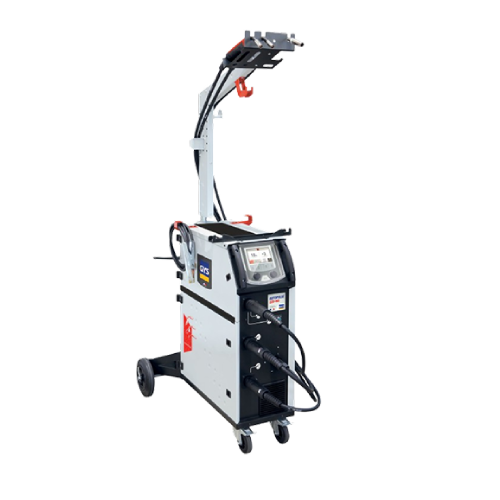

AUTOPULSE 320-T3 is a digital MIG/MAG double pulse generator with 3 integrated wire feeders. It is an extremely advanced machine with 68 synergic curves providing an exceptional arc quality. Versatile, it will hold 3 different torches to weld steel, aluminium and brazing (CuSi3/CuAl8). The user friendly interface and the very precise wire feed make the quality of the weld on very thin sheets outstanding.
- Reinforced trolley which increases stability and manoeuvrability with a 30L tank
- Highly resistant and double size stem (with or without extension)

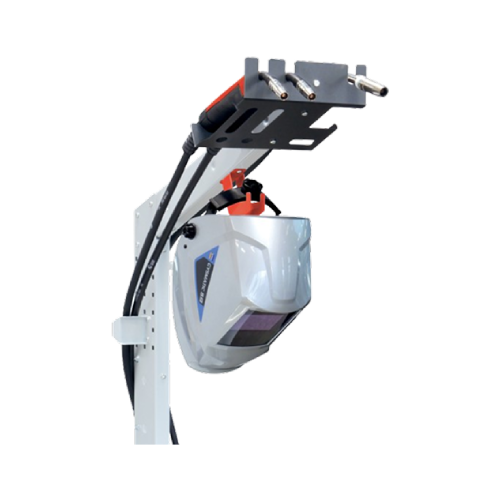

- Support across the full length of the overhanging arm
- 6 arm support integrated

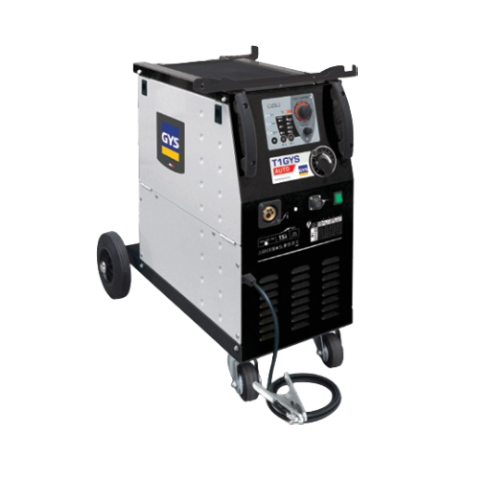

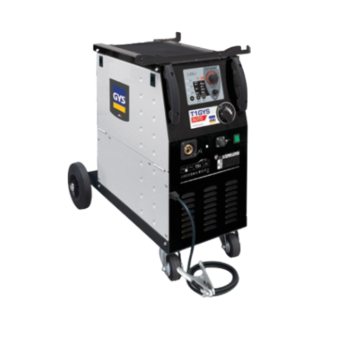

T1 GYS AUTO

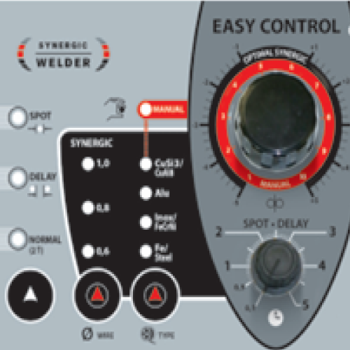

The T1 GYS AUTO is a three phase MIG-MAG, with torch connector, recommended for welding steel, stainless steel, aluminium and for MIG brazing of high-tensile strength steels with CuSi and CuAl wires (ideal for car body repairs).
- Welding gun interface-option to purchase a welding gun as an accessory for added speed and convenience.
- Memory function – retains the last used welding parameters.
- Three welding modes – standard, spot welding, delayed welding.
- Multiplex- 1 welding head (3m cable), 1 earth contact 200A (3m cable)
- 470x770x790mm
- Weight 55kg

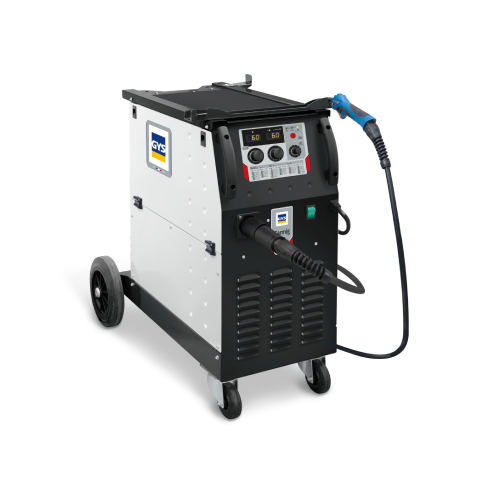

CARMIG-E AUTO

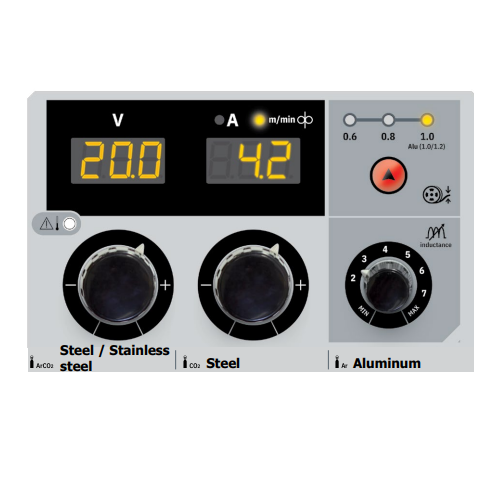

Ideal for welding thin metal sheets, it has been designed to fix cars at a minimum current of 15 A. The SMART interface facilitates settings, for considerable time saving.
- Reinforced trolley which increases stability and manoeuvrability with a 30L tank
- Highly resistant and double size stem (with or without extension)
- Support across the full length of the overhanging arm
- 6 arm support integrated
T3 GYS AUTO
230V steel dent puller with a power of 3800A ideal for all steel straightening and dent removal work. Easy to use thanks to its self-priming gun and its intuitive control panel.
- The power level (among 11 levels)
- The tool used (among 7 tools)
- No need to set the time and intensity
