INVERTER SPOT WELDER

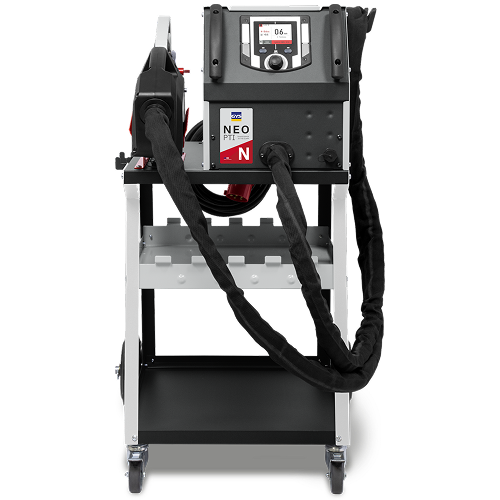

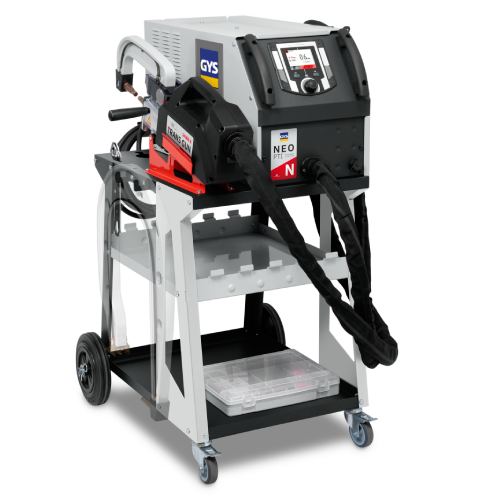

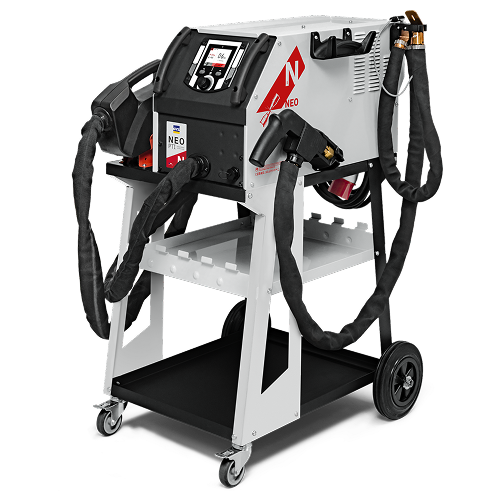

GYSPOT PTI NEO - 400 V
The GYSPOT PTI NEO is an automatic spot welder designed for the assembly of car body panels. Its liquid-cooled gun with integrated transformer is the lightest on the market, weighing just 9.7 kg when fitted with the G1 arm. Compact and manoeuvrable, it is ideal for workshops where space is limited. It features an ergonomic, user-friendly colour interface.
- Max. welding current of 14,000 A, ideal for welding different types of steel on modern vehicles (HLE/THLE, UHLE and Boron).
- Liquid-cooled (5 litres) transformer, electrodes and caps for maximum productivity.
- High speed (10 spots/min).
- Clamping force of up to 550 daN at 8.3 bar to satisfy OEM requirements.
- Gun fitted with an integrated transformer, minimising power consumption (20 A fuse).
| Specification | Details |
|---|---|
| Model | PTI NEO |
| Power Supply (3-phase) | 208 – 240 V |
| Fuse | 30 A |
| Tank Volume | 1.32 Gal (liquid not included) |
| Dimensions | 24.80 × 29.92 × 50 inch |
| Weight | 136.69 lb |
| Max Welding Current | 14,000 A (240 V) |
| Max Pressure | 550 daN (120.381 PSI) |
| Max Weldable Sheet Thickness | 0.098 + 0.098 + 0.098 inch |
| Interconnection Cable Length | 157.48 inch |
| Clamp Weight (with G1 arm) | 21.38 lb |

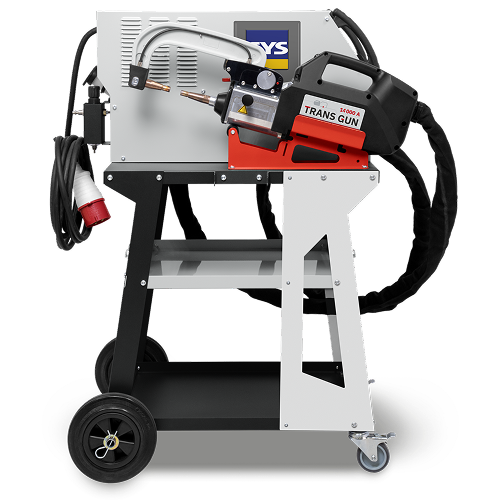

GYSPOT PTI MASTER (5m) - 400V

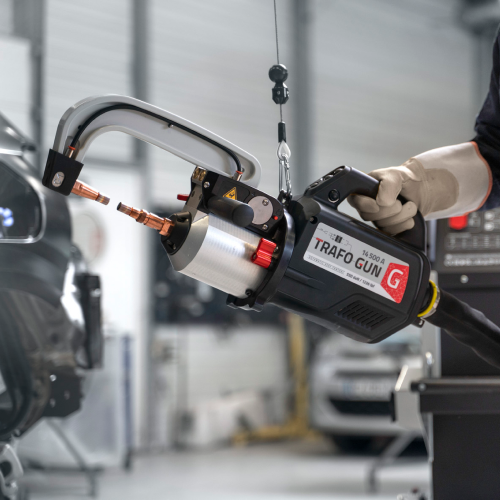

The GYSPOT PTI MASTER is an automatic spot-welding machine designed for the assembly of car body panels. For maximum user comfort, it is equipped with a manual OVERLAP feature. The liquid-cooled gun has an integrated transformer, and is extremely light, weighing just 10.3 kg when fitted with the G1 arm. Compact and manoeuvrable, it is ideal for workshops where space is at a premium. It features an ergonomic, user-friendly colour interface.
- Max. welding current of 14,000 A, ideal for welding different types of steel on modern vehicles (HLE/THLE, UHLE and Boron).
- Liquid-cooled (5 litres) transformer, electrodes and caps for maximum productivity.
- High speed (10 spots/min).
- Clamping force of up to 550 daN at 8.3 bar to satisfy OEM requirements.
- Gun fitted with an integrated transformer, minimising power consumption (20 A fuse).
| Specification | Details |
|---|---|
| Model | PTI MASTER |
| Power Supply (3-phase) | 208 – 240 V |
| Fuse | 30 A |
| Tank Volume | 1.32 Gal (liquid not included) |
| Dimensions | 24.80 × 29.92 × 50 inch |
| Weight | 138.89 lb |
| Max Welding Current | 14,000 A (240 V) |
| Max Pressure | 550 daN (116 PSI) |
| Max Weldable Sheet Thickness | 0.098 + 0.098 + 0.098 inch |
| Interconnection Cable Length | 157.48 inch |
| Clamp Weight (with G1 arm) | 22.71 lb |

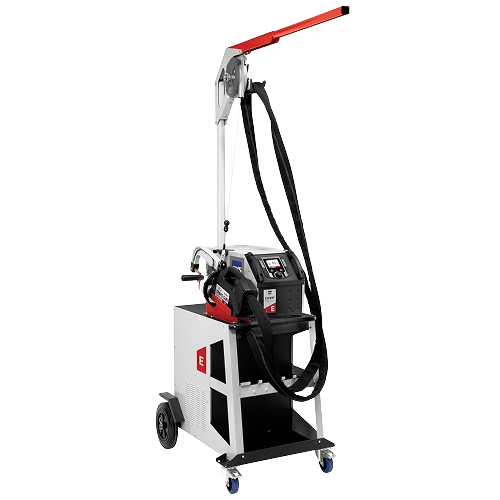

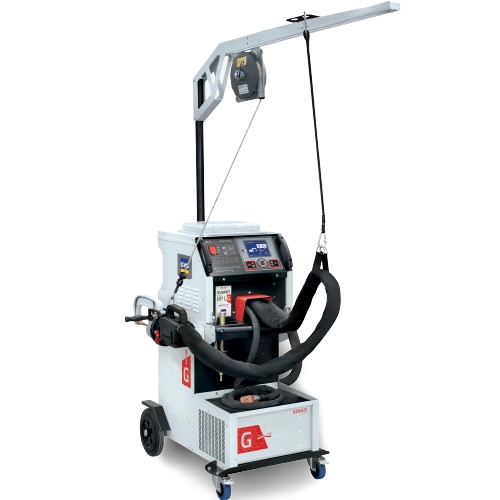

GYSPOT PTI EXPERT (5m) - 400V

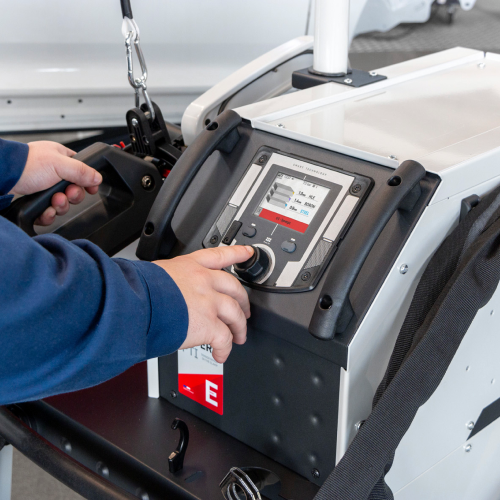

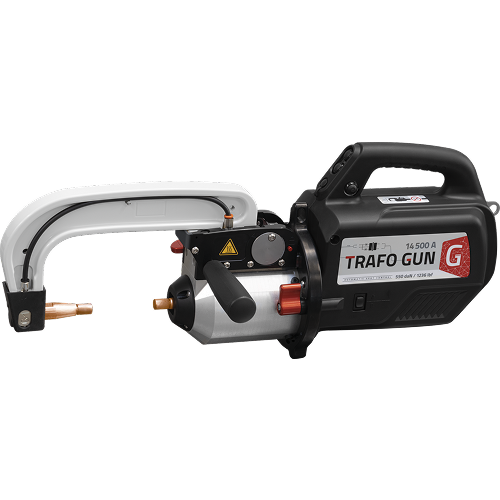

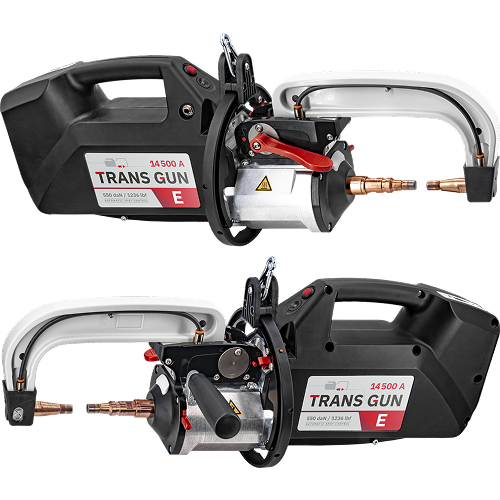

The GYSPOT PTI EXPERT is an automatic spot welder designed for the assembly of car body panels. It features a manual over-opening mechanism for improved user convenience, and a balancing arm to reduce the weight of the gun. The liquidcooled clamp has an integrated transformer, and can be rotated through 360° to facilitate welding in difficult-to-access areas. It also features an ergonomic, user-friendly colour interface.
- High duty cycle with a maximum welding current of 14,500 A, suitable for welding all types of steel on modern vehicles (HLE/THLE, UHLE and Boron).
- Liquid-cooled (30 litres) transformer, electrodes and caps for maximum performance.
- High speed (10 spots/min).
- Clamping force up to 550 daN at 8.1 bar to meet OEM requirements.
- Integrated transformer in the gun, reducing power consumption to a minimum (25 A fuse).
| Specification | Details |
|---|---|
| Model | PTI EXPERT |
| Power Supply (3-phase) | 208 – 240 V |
| Fuse | 50 A |
| Tank Volume | 7.93 Gal (liquid not included) |
| Dimensions | 26 × 39.37 × 90.55 inch |
| Weight | 262.35 lb |
| Max Welding Current | 14,500 A (240 V) |
| Max Pressure | 550 daN (116 PSI) |
| Max Weldable Sheet Thickness | 0.098 + 0.098 + 0.098 inch |
| Interconnection Cable Length | 196.85 inch (disconnectable) |
| Clamp Weight (with G1 arm) | 26.01 lb |

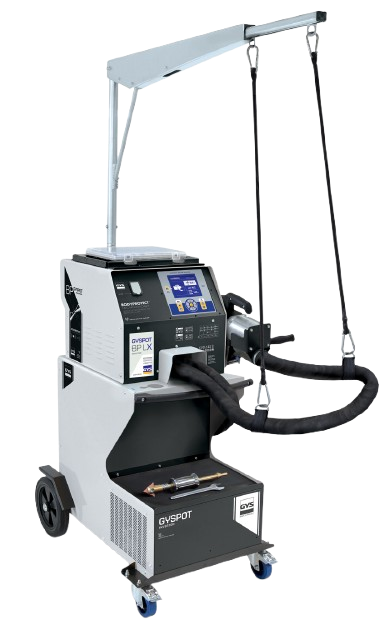

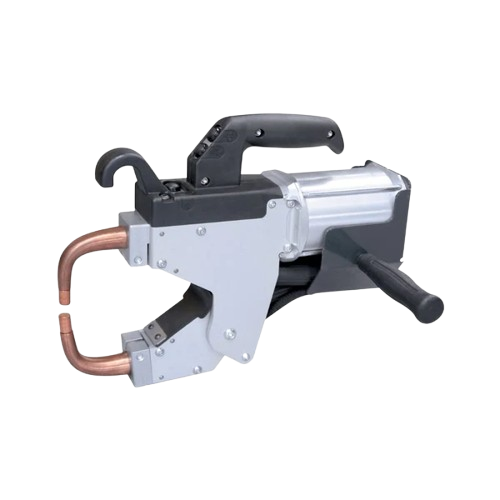

SPOT WELDER - BP.LX
The Gyspot INVERTER BP.LX product is a real advance in the field of spot-welding equipment. This machine
is the ideal answer to the welding requirements of high strength steels (UHSS/boron steel), with 550 daN
electrode arms force at 8 bars with 120 mm arms and 13 000 Amps welding current.
This machine is fully compliant with the European directive 2004/40/EC.
-
High-Power Spot Welding Capability
-
Automatic Parameter Adjustment
-
Touchscreen Control Panel
-
Welds High-Strength & Galvanized Steel
- High duty cycle with a maximum welding current of 14,500 A, suitable for welding all types of steel on modern vehicles (HLE/THLE, UHLE and Boron).
- Liquid-cooled (30 litres) transformer, electrodes and caps for maximum performance.
- High speed (10 spots/min).
- Clamping force up to 550 daN at 8.1 bar to meet OEM requirements.
- Integrated transformer in the gun, reducing power consumption to a minimum (25 A fuse).
| Specification | Details |
|---|---|
| Model | GYSPOT INVERTER BP.LX |
| Power Supply | 3 × 400 V |
| Max. Welding Current | 13,000 A |
| Max. Clamping Force | 550 daN @ 8 bar |
| Fuse | 32 A |
| Weld Thickness | 3+3+3 mm |
| Cooling | Liquid-cooled |
| Weight | ≈160 kg |
GYSPOT BP GENIUS

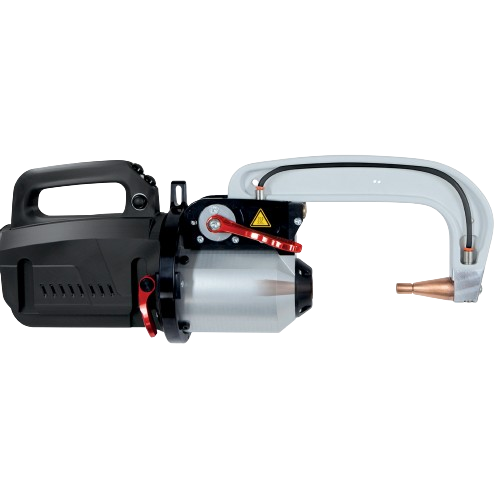

Designed for the assembly of modern steel sheets with high elasticity. The GYSPOT BP GENIUS is the ideal Spot Welder to meet Car Manufacturers requirements (550 daN / 13 000 A). Easy to handle and Reduced weight (6 kg), the new GENIUS clamp allows an automatic retraction of the electrodes in order for quick access of the welding area. The auto-mode allows welding without the operative entering any parameters into the machine. (mode AUTO)
- Welding current : 13 000 A
- Clamping force : 550 daN at 8 bar.
- Watercooled power cables, electrodes and caps.
- Maximised productivity thanks to the new G clamp ram concept
and the welding algorithme. - User friendly navigation using a 5.7’’ LCD screen.
- Automatic adjustment of pressure between electrodes
Spot count feature to determine the caps lifetime. - Special welding of bonded sheet metals or hard to weld coatings.
| Specification | Details |
|---|---|
| Model | GYSPOT BP GENIUS – 400 V |
| Power Supply | 3 × 400 V |
| Max. Welding Current | 13,000 A |
| Max. Clamping Force | 550 daN |
| Fuse Options | 32 A / 40 A / 50 A |
| Cable Length | 2.5 m |
| Welding Frequency | Up to 10 spots/min |
| Weight | ≈164.5 kg |

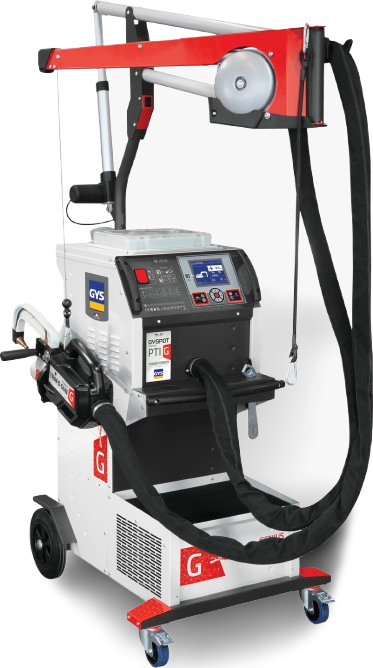

GYSPOT PTI GENIUS - 400 V
As a result of the world leader’s experience, the GYSPOT PTI GENIUS is the spot welder of the future. Its on-board intelligence guarantees full automation, offering bodyshops the ability to increase their efficiency: Featuring a genius G-clamp with pneumatic over-opening and an easy-to-adjust, overhanging, motorised arm providing a wide working area. It is the most advanced machine for the active bodyshop
- Light weight of 11.3 kg with the G1 arm.
- 80 mm of automatic opening capacity (20 mm at rest)
- Manual over-opening of the arm for access to difficult areas (200 mm release).
- Brass clamp support and arm-base for an optimal electrical contact (effortless maintenance).
- The double action feature ensures a quick arm removal without the use of tools.
- Automatic cooling connection.
- Remote controlled clamp (opening, welding, adjustments validation).
- Lockable Gyrosocope, ball bearing, integrated into the clamp body.
- High duty cycle (18 points/min).
- Optional G9 arm suitable with auto mode.
- Optional single-point gun (option).
| Specification | Details |
|---|---|
| Model | GYSPOT PTI GENIUS – 400 V |
| Power Supply | 400 V / 3-phase |
| Max. Welding Current | 14,500 A |
| Max. Clamping Force | 550 daN |
| Fuse | 25 A (D) |
| Max Weld Thickness | 2.5 + 2.5 + 2.5 mm |
| Cooling | Liquid-cooled |
| Weight | ≈107 kg |
